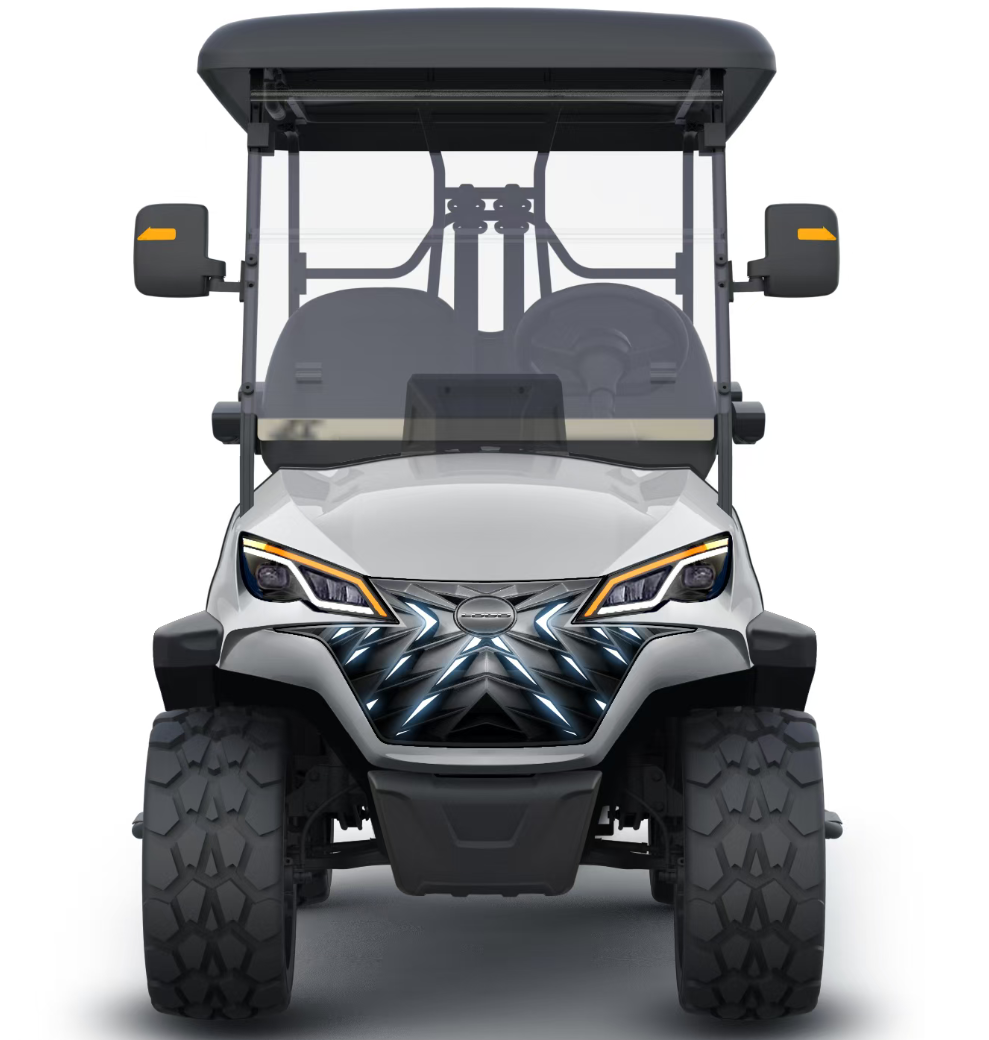

Factory Prices high quality Electric Golf Cart Li-ion battery 4+2 seater 72V 7.5kw

Name: Factory Prices high quality Electric Golf Cart Li-ion battery 4+2 seater 72V 7.5kw
Brand: Jiangsu Trail-blazer Vehicle Industry Co.,Ltd
Availability: InStock

Inquiry Basket

OEM：

Refuse

Sample：

Refuse

Port：

Payment：

Other

Place of Origin：

China

Supply Ability：

1 piece per Day

Product Details

Port

SHANGHAI

Payment Terms

L/C,D/P,T/T

Curb Weight

≥500kg

Front wheel tread(mm)

960

Maximum Speed

30-50Km/h

Min ground clearance(mm)

170

Dimension

2400*1200*1950

Minimum Grand Clearance

150-200mm

Certification

Seats

5 - 6

Tire

Off-road tires, 23 x 10-12

Aluminium alloy wheel hub

undefined

Fuel Type

Electric

Roof strut

Steel

Rear wheel tread(mm)

1000

streering system

Self-adjust rack and pinion

Driving Mileage

≥90km

Brake System

4 wheels disc brake +EM Brake

Wheelbase(mm)

2460

Grade Ability

15-20°

Overall dimensions(mm)

3750x1340x1990

Standing Postion of Tail Caddie

Unequipped

Packaging Detail

(Length width height)(cm)

Package Preview

https

Products Description

TBM 2nd generation 4+2 seats lifted golf cart price and specification

Standard/Optional

remarks

Model

TBM F4GH42B 4+2 seats lifted golf cart

Key Components

Chassis

Carbon steel

Battery

48V150Ah
Maintention-free Battery, 48V150Ah

standard

72V/ 100Ah（with MSDS certificate）
LiFePO4 Lithium Battery (With Certificate)

Optional

package

72V/125Ah ternary lithium battery

Optional

package

Motor

Three asynchronous AC motors,5kW

standard

Three asynchronous AC motors,7.5KW

Optional

unit

Controller

inpower：48V Inpower-3528 72V Inpower-3818

standard

brand Curtis-1234SE or SME

Optional

unit

Performance

Passenger capacity

standard

rang at max speed

80 - 100

standard

Max Speed

30 km/h

standard

Climb ability

20%

standard

Dimensions

(mm) Overall dimensions

3750x1340x1990

standard

(mm) Min ground clearance

170

standard

(mm) Wheelbase

2460

standard

(mm) Front wheel tread

960

standard

(mm)Rear wheel tread

1000

standard

Body

Body

PP plastic front body + PP plastic rear body

standard

Roof

Plastic

standard

Steering wheel

Carbon fiber

standard

Windshield

foldable

standard

Roof strut

Steel

standard

Seatbelt

2-point seatbelt

standard

seat

Artifical leather

standard

1) Backrest and Cushion

Waterproof seat cushion and backrest

standard

2) armrest

Black PP Plastic

standard

3) Bottom shell

PP Plastic

standard

4）Ice Bucket

PP Plastic

standard

Floor

Non-slip floor mat

standard

Dashboard

F/ R Switch
SOC
10 inch screen

standard

Beverage holder

4 units. PP Plastic

standard

Side trim

PP Plastic

standard

Electric System

Lighting system and horn

2 headlights, 2 front turn signals,Front LED Light, 2 taillights( each combined 1 brake light with 1 turn signal), horn.

standard

Reversing Alarm

Yes

standard

Charger

Smart Charger

standard

Steering system

streering system

Self-adjust rack and pinion

standard

Brake System

4 wheels disc brake +EM Brake

standard

Suspension

Front suspension：Front double swingarms suspension
Rear suspension: Rear Tailing arm suspension

standard

Tire

Off-road tires, 23 x 10-12; Aluminium alloy wheel hub

standard

Body,Seat,Rim Color

Body:Ocean blue
Cushion:Black
Rim: Black

standard

Optional parts

Rear trailer hook

Optional

Back ball holder

Optional

Three-point rear seat belt

Optional

set

Up Front

Optional

set

Laminated glass wiper

Optional

set

Front bumper

Optional

set

Long stereo

Optional

down side Ambiance lamp

Optional

set

up side Ambiance lamp

Optional

set

Indoor lighting

Optional

Endoscope

Optional

Front trailer hook

Optional

Both pedals

Optional

pair

Sand Bottle x1

Optional

Refrigerator x1

Optional

Ice Bucket

Optional

Seat with headrest x 1 pc

Optional

Monochrome embroidered seats x 1 pc

Optional

Seat embroidered LOG x 1 pc

Optional

Off-road tires, 22 x 10-14; Aluminium alloy wheel hub=4 pcs

Optional

set

Soft closure

Optional

set

Packing condition

iron frame

（Length width height）（cm）：2480*2320*2520 (2 units in one iron frame （20 units in a 40HQ container ）iron frame with plastic stretch
film，Need to remove the top roof , remove the reverse seat, deflate the tires）

net weight/gross weight（KGS）：675/735

standard

wooden box

If a single unit is packaged in a wooden box, the packaging size (cm) is 2600*1450*1650. The top and tail need to be removed and
packed. The wooden box requires additional costs.

net weight/gross weight（KGS）：675/840

Optional

unit

1）40 HQ mixed installation: 5 units for 4+2 seats, and 11 units for 2+2 seats are the most cost-effective

2）40 HQ pure packaging:4+2 seats can accommodate 12 units

Company Profile

Trail-blazer Manufacturing is a vehicle manufacturer specializing in personalized customization and refitting. The company has a strong background in automotive and all-terrain vehicle design technology, and broad ideas for new product development.

Trail-blazer has rich supply chain resources and is good at cross-border integration of supply chains Resources, to truly achieve the industry's most cost-effective products and the most professional services.

The price of our company's electric low-speed vehicles ranges from US$2,000 to US$7,000. With rich OEM experience and ODM capabilities, partial or complete vehicle customization can be realized. As a manufacturer that constantly develops new products,we are always at the forefront of the industry. And successfully launched a more off-road style appearance and real 4-wheel drive in 2023, which makes our products more off-road capable.

Our factory believes in the business philosophy of "independent research and development, leading technology, first-class service, and integrity-based". We have launched a series of electric special vehicles and obtained several patents. The products are exported to more than 30 countries on five continents around the world, and have won unanimous praise.

Why Choose Us

FAQ

Q1. Do you accept special request to customize the vehicles ?

Answer: we could customize vehicles as per customer's special request with reasonable cost and delivery time.

Q2. What is your warranty term?

Answer: We provide 1 year warranty. for failed part under warranty, if it can be repaired at your side and the repair cost is
lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.

Q3. Do you provide after service spare parts?

Answer: Yes, we provide all the spare parts to our vehicles, even 8 years after we stop the production of the model. For your easier working to select the spare parts, we also supply parts list for you to choose the parts from .

Q4. Do you provide technical support?

Answer: we could customize vehicles as per customer's special request with reasonable cost and delivery time.

Q5. Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD ?

Answer:we will supply the vehicle assemble guide manual , When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can give instructions via different ways when needed.

Q6. Do you accept OEM order?

Answer: Yes, we will accept.

Q7. What are your terms to be your agent/dealer in my country?

Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell
reasonable volume of electric vehicles.

Q8: What is your payment term?

Answer: For new customers, our typical payment term is ‘T/T 30% deposit against order confirmation, T/T 70% before container loading’

Q9: Why should you buy from us not from other suppliers?

Answer: Our factory has strong manufacturing capacity, high quality control of products, cost control ability, who can offer high quality reasonable price products.
