Body color and LOGO can be customized according to customer needs
| Electrical system | controller | AC asynchronous controller | |||
| Battery | Special maintenance-free battery for traction 48V (6V*8pieces 200AH) | ||||
| Motor | Special AC asynchronous motor 48V/5KW | ||||
| Charger | Computerized intelligent car charger 48V/25A, charging time <8 hours | ||||
| DC Converter | High power isolated DC converter 48V/12V-500W | ||||
| Body configuration | Front shield and wiper | Automotive laminated glass, wiper blades | |||
| Metal stamping one-time forming | |||||
| Roof | Four-angle adjustable luxury PU fabric seat | ||||
| Cushion | Anti-slip floor leather | ||||
| Floor | The body is a one-piece metal stamping shell, and the entire vehicle is pickled, phosphated, and cathodic electrophoresed. also beautiful and durable,lightweight and other unique advantages. | ||||
| Body | Made of national standard steel, the main beam is made of patented technology for tailor welding and pickling, phosphating, cathodic electrophoresis and anti-rust treatment. | ||||
| Chassis | Adjustable for each hand、foldable exterior rearview mirror. | ||||
| rearview mirror | Headlights, turn signals, reversing lights, brake lights、Fog lights, strobe lights | ||||
| Led light signal | Standard police light with shouting function and USB external amplifier function | ||||
| Dashboard | electric lock switch, combination switch, dual-speed wiper switch | ||||
| steering system | Two-way rack and pinion steering system, automatic gap compensation function, EPS electric power assist | ||||
| Brake system | Front disc and rear drum + hydraulic dual-pipeline braking system, vacuum electronic assist + handbrake parking | ||||
| suspension system | Front: MacPherson independent suspension Rear:Trailing arm coil spring |
||||
| audio speaker | USB playback host can be plugged in and dual speakers,Whistler, reversing reminder buzzer. | ||||
| wheel | 165/70R13C+ wheel cover | ||||
| Technical parameters | length*width*height | 4000*1650*2005±5(mm) | curb weight | 960kg | |
| Rated number of passengers (people) | 6-8 | Trunk size | 1300*210*400mm | ||
| Maximum driving speed | ≤30km/h | Trunk load | 50kg | ||
| Driving range | ≥90（km） | minimum ground clearance | ≥150mm | ||
| Maximum grade | ≥20% | Wheelbase | 2900±10(mm) | ||
| Slope holding performance | 20% | Wheelbase (front/rear) | front1420mm/rear1420（mm） | ||
| Minimum turning radius | ≤5.2m | braking distance | ≤5m | ||
| Optional parts | 1. 6v8 only changed to 6v12 only + 3000 yuan 2. Only 12V6 can be changed to 8V9 only +2000 yuan 3. 72v5KW changed to 72v7.5KW+1000 yuan 4. The roof air conditioner is 3,000 RMB per unit 5.the aluminum alloy wheels are 500 RMB 6.LEDscreen is 500 RMB 7.the car recorder is 500RMB 8.bus fan is 200 RMB 9.the bus seat is 1,000 RMB |
||||

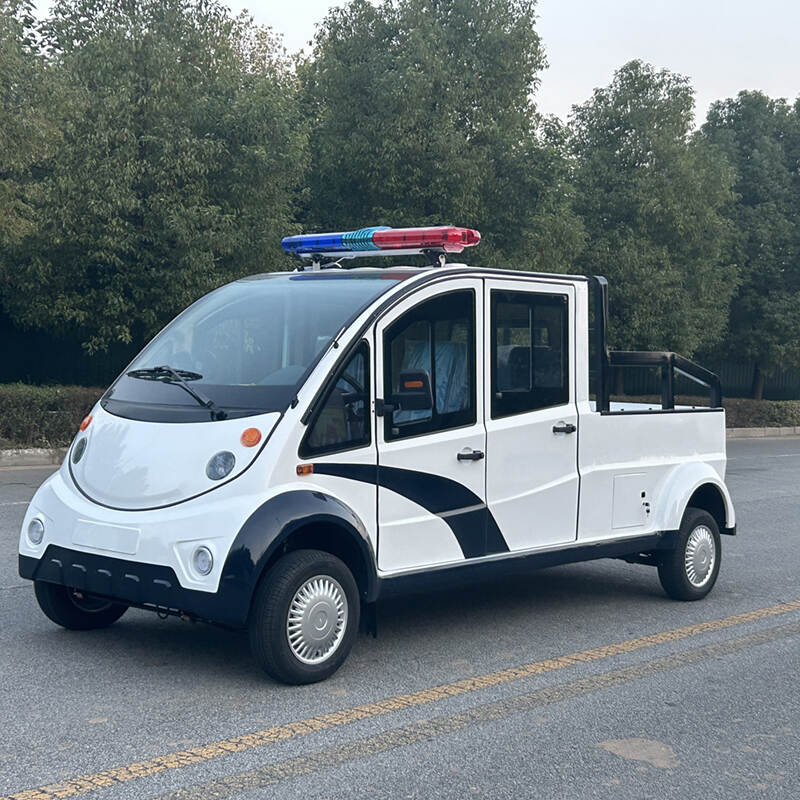

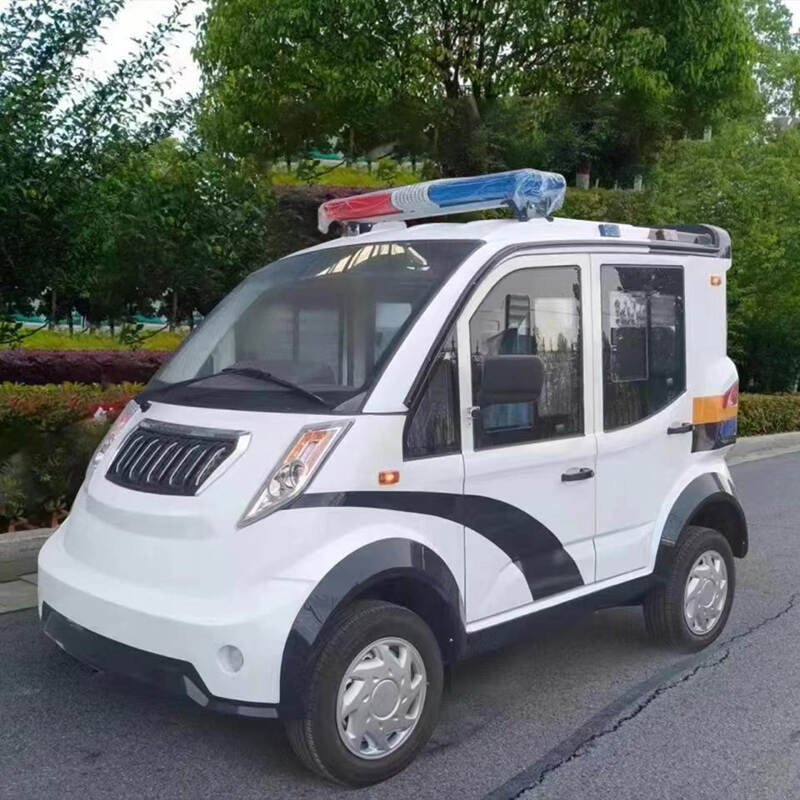

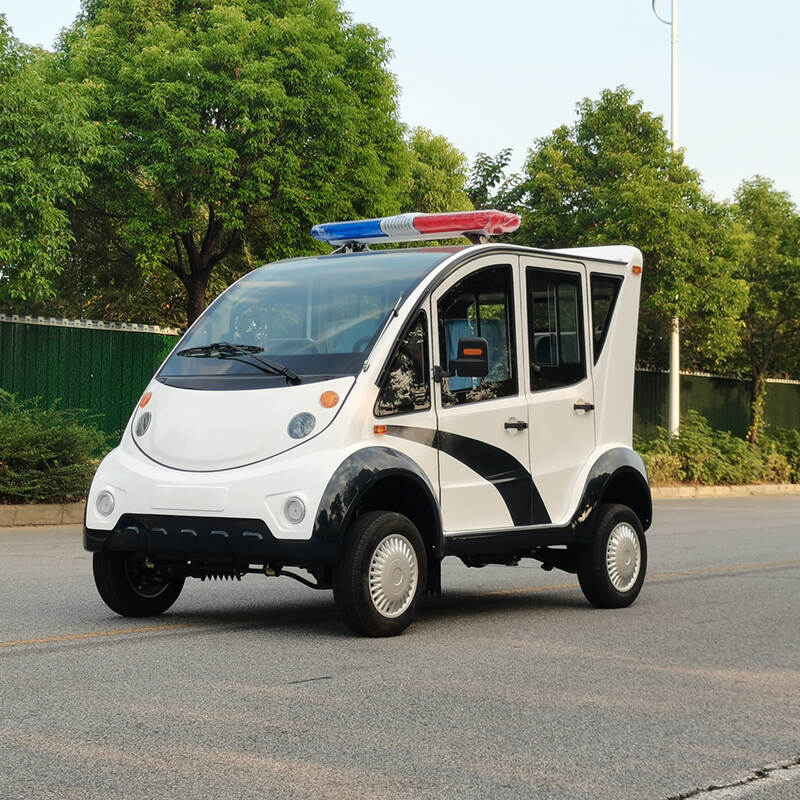

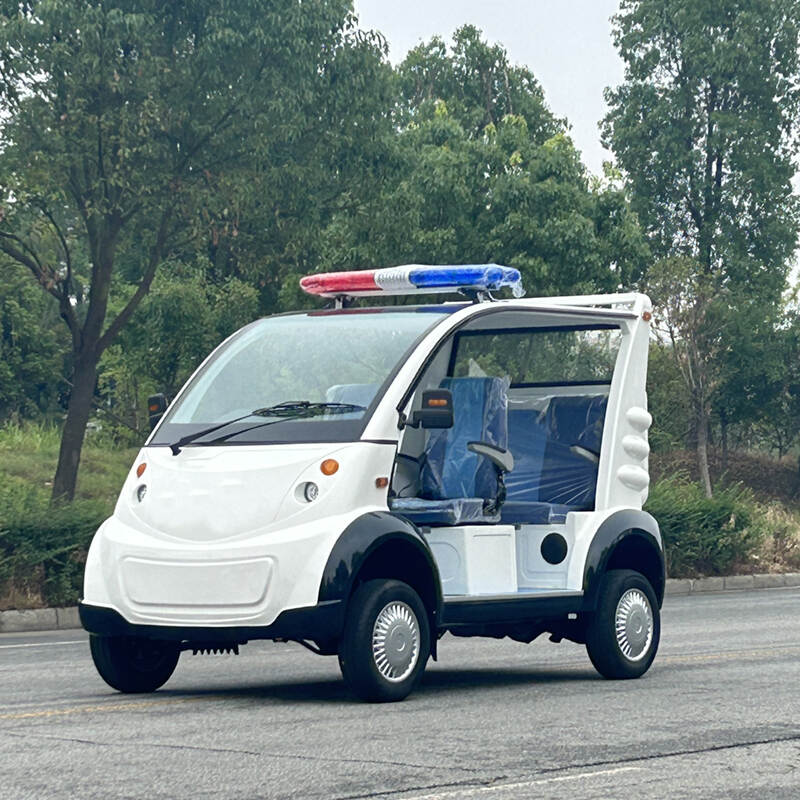

Electric patrol car
Product introduction
The entire vehicle structure is made of high-strength metal materials and uses high-strength welding processes.
It has good sturdiness and durability and can adapt to different usage environments.
The body shell is stamped in one piece.
Using high-strength welding technology
The color matching is also very eye-catching. Commonly used color schemes include blue, white, black, yellow and other color schemes commonly used by police or security.
The seats are beautiful and ergonomically designed to provide good support and comfort.
The materials are mostly leather or fabric, which is easy to clean and maintain.
The control panel is simple and clear, equipped with basic operating functions such as forward gear, neutral gear, reverse gear, accelerator and brake.
There are also operations such as reversing images, which are very easy to use. It is also equipped with police patrol equipment to facilitate patrol personnel during patrols.
Equipped with megaphones, warning lights and other equipment.
It is convenient for patrol officers to give warnings and publicity during patrols.
Intelligent built-in charger, automatically cuts off power when fully charged
There are two options for driving batteries: lead-acid and lithium batteries.
Electric patrol vehicles are widely used for daily patrols and security maintenance
It can be used in urban streets, communities, campus scenic spots, industrial parks, airports, stations and other places.
Design concept
1. Design concept to maximize vehicle riding space
2. Mini car chassis structure, the whole vehicle is safe and sturdy
The interior adopts humanized design, which conforms to ergonomic principles, making it easier to control and more comfortable to ride. The use of high-strength steel frame raw materials ensures that the entire vehicle frame and chassis are stronger; the car-style suspension shock-absorbing system, four-wheel hydraulic braking system and safety laminated glass that has passed national 3C certification make the operation more stable and safer for carrying passengers.
Excellent selection of high-quality parts
Supported by international brands, quality is trustworthy
Timely supply of supporting equipment
High-quality suppliers ensure the traceability of vehicle product quality
It adopts an international-level AC electronic control system, special vacuum radial high-speed tires for cars, and electronic vacuum-assisted braking (optional). It has a special equipment manufacturing license issued by the General Administration of Quality Supervision, Inspection and Quarantine, and the vehicle has a longer service life.
Product advantages
1. Novel appearance, elegant and beautiful design, unique wider headlight design, safer driving at night and more fashionable appearance.
2 Easy to use and comfortable to ride
3. Energy saving, environmental protection, and low cost of use. In an era of rising oil prices, trams are more economical, have low electricity costs, and are more environmentally friendly and energy-saving.
4. Service and maintenance are guaranteed, and you have no worries when using it. When you buy a car, you sign a service and maintenance commitment agreement, and a professional after-sales service team is equipped to provide considerate technical guidance to ensure that you receive strong service and maintenance guarantee.
Nowadays, the patrol cars used in cities and communities are generally four-wheel electric patrol cars. Nowadays, the price of gas has exceeded 8 yuan, and it is too expensive to use ordinary patrol cars. An ordinary patrol car consumes about 40 yuan in fuel per 100 kilometers. In order to save money, I think a four-wheel electric patrol car is more economical. The power consumption per 100 kilometers is only 6-8 kWh, which is only 3-4 yuan, which is more than an ordinary patrol car. Saved 10 times. Moreover, the four-wheel electric patrol car saves energy and reduces emissions, causing little pollution to the city, both in terms of environment and noise. The electric patrol car is an efficient, energy-saving, low-noise, zero-emission green police car. It has a voice device, uses a battery, has a maximum speed of 30 kilometers and a maximum driving range of 80-120 kilometers.
Electric patrol cars and electric police cars have many advantages, including low price (the price ranges from RMB 38,000 to RMB 60,000 per unit), environmental protection and energy saving (the cost per 100 kilometers is more than 2/3 cheaper than gasoline vehicle patrols), and low noise, so they are used for urban patrols. Not only can it significantly save fuel costs, it can also increase the rate of police encounters on the street and increase the density of street patrols. It is more convenient to get in and out of the car than ordinary cars and has a wider field of vision.
The four-wheel electric patrol car has low noise when driving, which can reduce the noise of citizens during night patrols, but ordinary patrol cars cannot achieve this. The four-wheel electric patrol car is more convenient to use and simple to operate. Even in an emergency, novices can drive it well, reducing certain safety risks.
